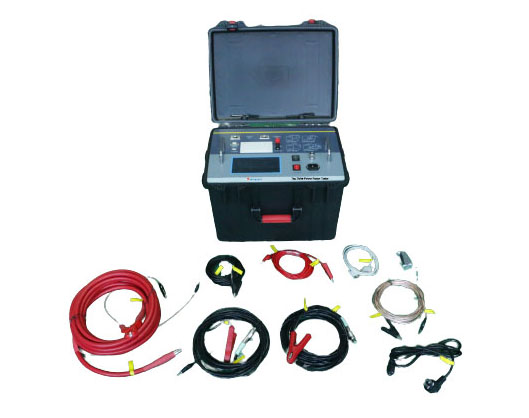

The Transformer Load No-load and Capacity Tester is a specialized instrument designed to analyze the performance characteristics of transformers. It measures the no-load current, no-load loss, short circuit (load) loss, and impedance voltage, providing essential insights into the transformer’s efficiency and capacity.

Functionality

Three-Phase Voltage RMS: Measures Uab, Ubc, Uca.
Three-Phase AC Voltage Average: Uab, Ubc, Uca.
Three-Phase Current RMS: Ia, Ib, Ic.
No-Load Loss and Current Percentage: Po, Io%.
Load Loss and Impedance: Pt, ekt, Zt, including at specified temperatures.
Transformer Capacity: Actual and judged capacity.

Specifications

AC voltage	Range	10～650V
	Resolving power	0.001V
	Accuracy	0.2%±0.001V
AC Current	Range	0.5～60A
	Resolving power	0.001A
	Accuracy	0.2%±0.001A
Frequency	Range	45Hz～65Hz
	Resolving power	0.001Hz
	Accuracy	0.2%±0.001Hz
Power	Range	0～39kW
	Resolving power	0.001kW
	Accuracy	＜±0.5%(Cosφ＞0.1)，±1.0%(0.02＜Cosφ＜0.1)
Capacity test range	10kV Dry type transformer	30kVA～3150kVA
	10kV Oil immersed transformer	30kVA～3150kVA
	35kV Oil immersed transformer	50kVA～31500kVA
	20kV Dry type transformer	50kVA～2500kVA
	35kV Dry type transformer	50kVA～2000kVA
Environment condition	Operating temperature	-10℃～+50℃
	Storage temperature	-25℃～+70℃
	Humidity	relative humidity：5%～95%，No dewing

Features

Accurate Capacity Measurement: Precisely measures various distribution transformers’ capacity.
Automatic Range Switching: Simplifies voltage and current range measurements.
Three-Phase Transformer Testing: Automatically verifies wiring and displays voltage and current vectors.
Versatile Load Testing: Suitable for transformers up to 1000KVA at full load and 3150KVA at 1/3 rated current.
Automatic Corrections: Includes waveform, temperature, non-rated voltage, and non-rated current corrections.
Large LCD Display: 20 * 240 screen with high brightness, full menu, and touch button operation.
User Customization: Preset up to 40 sample parameters, deletable as needed.
Real-Time Clock: Records date and time for result management.
Thermal Printer Integration: Quick on-site result printing.
Data Storage: Stores 500 sets of results, with power-down storage and online data transfer.
Range Expansion: Allows external voltage and current transformers for extended measurements.

This tester is a vital tool for ensuring the efficiency, reliability, and compliance of transformers, with a user-friendly interface and advanced features tailored to the needs of the electrical industry.
